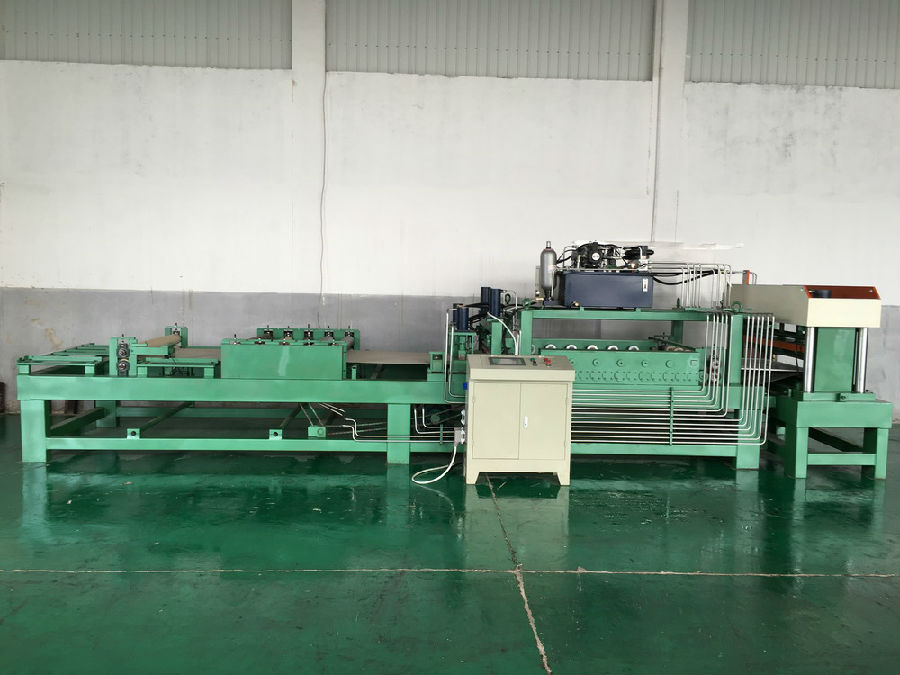

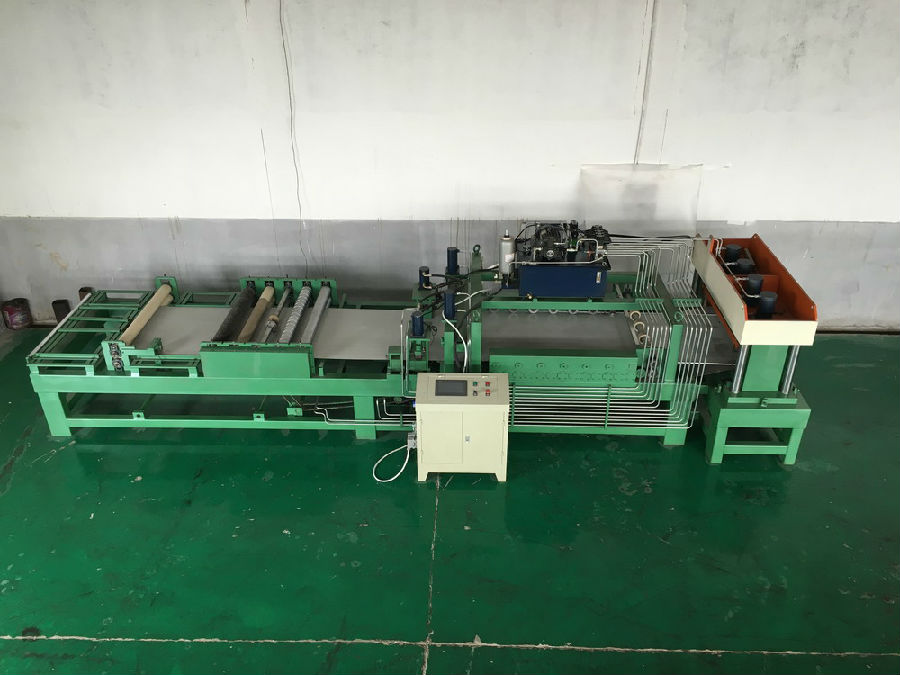

Full-automatic Forming Machine(Hydraulic&Punching)

Type:XD-YY-08

The device can produce a width of 350mm - 1200mm. Thickness  0.2 mm - 1.0 mm stainless steel plate (and color plate);

The device is controlled mainly by computer and 10.4-inch touch screen, Hydraulic and mechanical roll pressure synthesis processing. It greatly improves equipment stability and service life.

Automatic calculation of punching and punching position accurately, so it can make better cold storage board, fold to a molding, flanging is faster and more accurate, and can save a large part of the labor cost and improve the accuracy of the product production. The accuracy can reach the width + -0.5 mm; Diagonal + -1mm;
